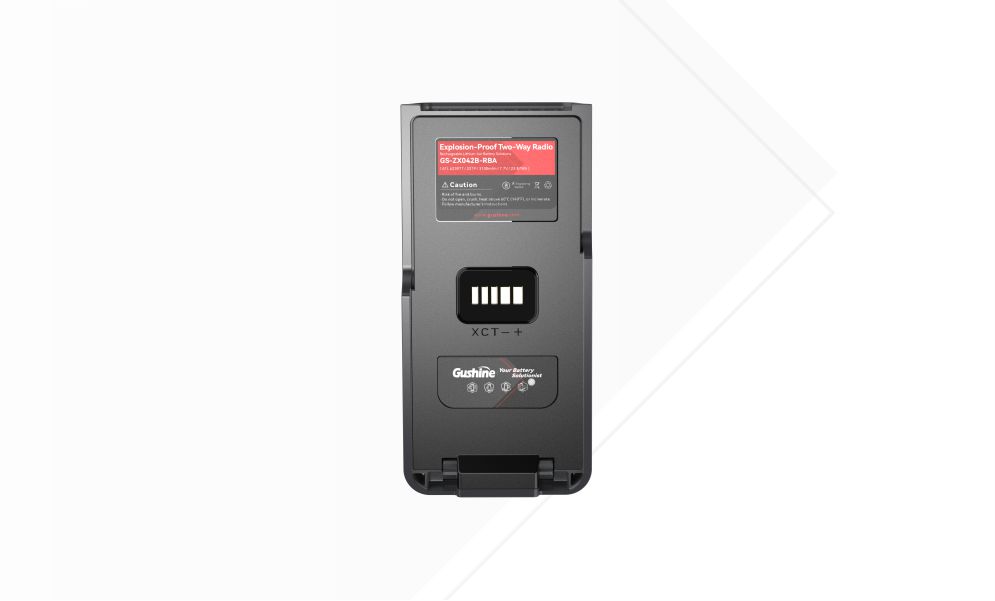

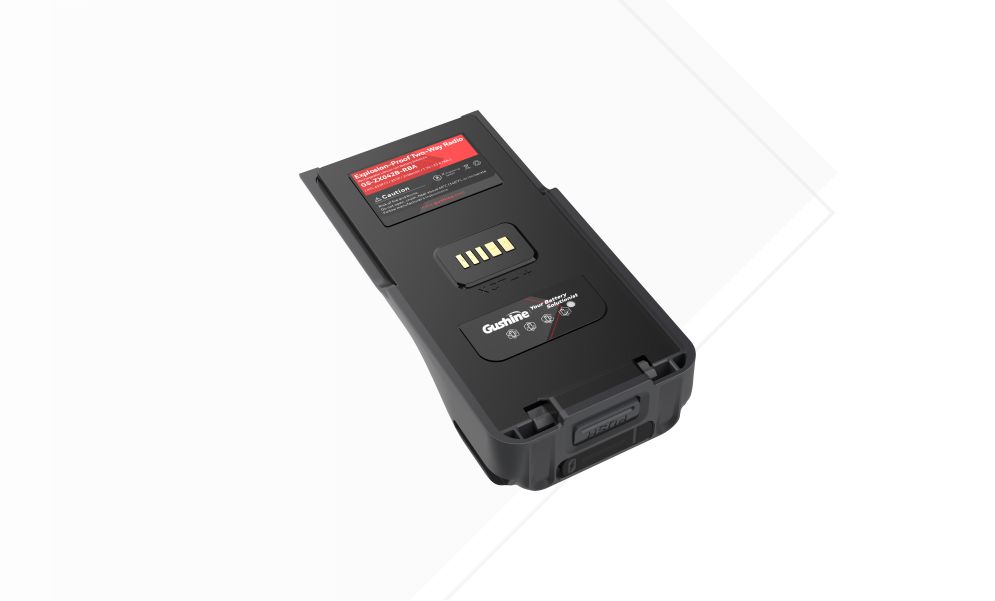

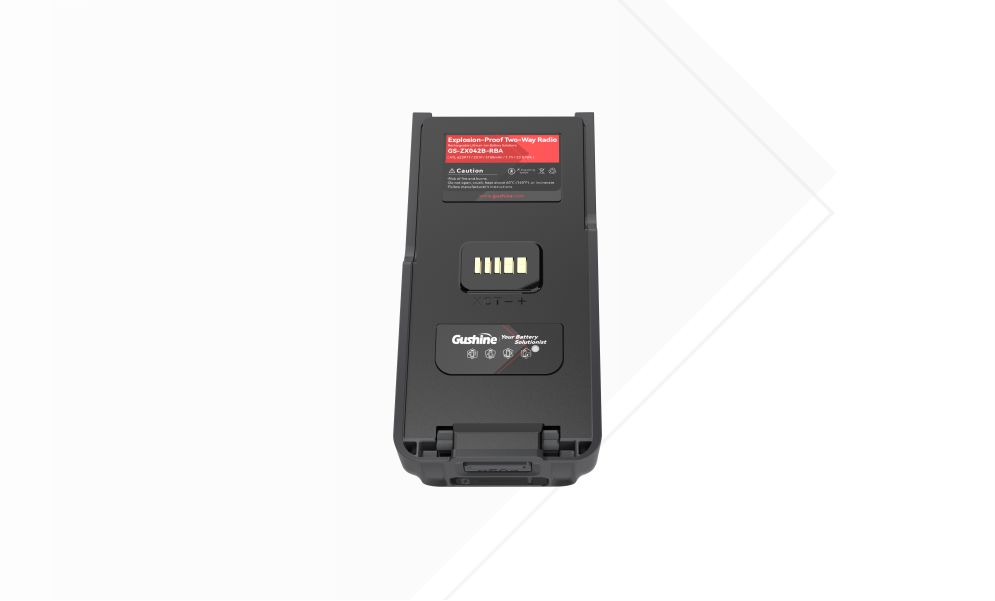

Two-Way Radio_ZX042B-RBA
- 3100mAh Long Runtime
- 3A Stable Power Output
- Convenient Type-C Charging
- −30 to 60°C Wide-Temperature Discharge
| No. | Item | Parameter | Remarks | |
| 1 | Capacity | Typ.3100mAh | 0.2C Discharge 25℃ | |
| Min.3050mAh | ||||
| 2 | Nominal Voltage | 7.7V | ||
| 3 | Charge Voltage Limit | 8.8V | ||
| 4 | Maximum Charging Voltage | 8.9V | ||
| 5 | Discharge Termination Voltage | 6.0V | ||
| 6 | Discharge Cut-off Voltage | 5.0V | ||
| 7 | Charging Mode | CC-CV | CC/CV | |
| 8 | Charging Current | 600mA | 0.2C | |
| 3000mA | 1C | |||
| 9 | Standard Discharge Current | 1500mA | 0.5C | |
| 10 | Maximum Discharge Current | 3000 mA | 1C | |
| 11 | Operating Temperature | Charging | 0°C~+15°C | 0.2C Charging to 8.8V |
| 15°C~+20°C | 0.7C Charging to 8.8V | |||
| 20°C~+45°C | 1C Charging to 8.8V | |||
| 45°C~+60°C | 0.5C Charging to 8.3V | |||
| Discharging | -30°C~+0°C | 0.35C Discharging to 6.0V | ||
| 0°C~+60°C | 1.0C Discharging to 6.0V | |||
| 12 | TYPE-C Charging | Type-C Input Voltage | 5V | |
| Type-C Input Current | 2000mA | |||
| Battery Charging Voltage | 8.8V | |||
| Battery Constant-Current Charging Current | 1000mA | |||
| Battery Charge Termination Current | 150mA | |||
| Battery Trickle Charging Current | 200mA | |||
| Battery Pre-Charging Voltage | 6.2V | |||
| 13 | Storage Temperature | Less than 3 months | -20°C~+45°C | |
| More than 3 months | -25°C~±3°C | |||
| 14 | Relative Humidity | 65±10% | ||
| 15 | Battery Internal Resistance | ≤ 250mΩ | Measure the battery AC internal resistance at 1 kHz after standard charging. | |
| 16 | Battery Weight | 127g | About | |
| 17 | Battery Dimensions | Length | 103.19±0.20mm | |
| Width | 49.97±0.20mm | |||
| Thickness | 17+0.30/-0.10mm | |||
| 18 | Cell Matching | Capacity | ≤30.5mAh | |
| Voltage | ≤10mV | |||
| Internal Resistance | ≤5mΩ | |||
3100mAh Long Runtime: 7.7V / 3100mAh, approximately 23.9Wh, providing continuous power for high-frequency communication and extended standby operation of two-way radios.
3A Stable Power Output: Maximum discharge current of 3A, meeting the power requirements for wireless transmission, continuous communication, and varying loads.
Convenient Type-C Charging: Supports 5V / 2A Type-C input, enabling convenient and efficient recharging in mobile applications.
3A Fast Charging: Supports a maximum charging current of 3A at the battery pack level, improving charging efficiency and reducing charging time.
−30 to 60°C Wide-Temperature Discharge: Supports operation across a wide temperature range, making it suitable for outdoor inspection, security, and professional communication applications.
High-Precision Cell Matching: Cells are carefully matched for capacity, voltage, and internal resistance to improve the long-term cycling performance and output stability of the battery pack.
