Industrial Handheld Terminal Battery Pack

Handheld terminals are widely used in logistics, military, communication, surveying, retail, and healthcare. These devices require reliable power sources to ensure their operation in various environments. Gushine's batteries are designed with waterproof, dustproof, intrinsically safe, and shock-resistant features, ensuring stable and safe operation of the devices even in extreme conditions.

Custom Lithium Battery Pack

Industry Applications

Two-Way-Radio

Portable Printer

Barcode Scanner

POS Machine

Camcorder

Handheld Surveying Equipment

Industrial Terminal Battery Solution

Square cell (1S2P)

High capacity and high stability battery cells

Accurate electricity meter

Realize battery voltage, current, temperature monitoring SOC, SOH

Square cell (1S2P)

Realize battery voltage, current, temperature monitoring SOC, SOH

Engineering plastic shell

Adopting flame-retardant and explosion-proof engineering plasticsCan achieve UL94-V0 fire rating

Cell fixing bracket

Battery Protection Board

Implement overcharge protection, overdischarge protection, overcurrent protection, short circuit protection, and temperature monitoring

Featured Models

2860mAh 7.4V Wireless two-way radio waterproof lithium battery pack

Model: WD009B-RXA-2S1P
Minimum Capacity: 3200mAh
Nominal Voltage: 7.2V
Dimensions: 119.2(L) x 47.6(W) x 31.0(T) mm
Weight: 130g
Ingress Protection Rating: IP67

3460mAh 3.7V Logistics and warehouse data collection terminal lithium battery pack

Model: MZ1056LI 1S2P
Cell: 653865 / 1880mAh / 3.7V
Rated Capacity: 3460mAh
Rated Energy: 12.802Wh
Nominal Voltage: 3.7V
Packaging: Plastic shell, ultrasonic welding
Features: Waterproof rating IPX5

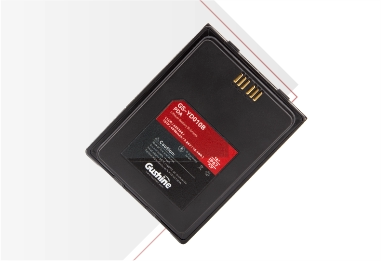

4000mAh 3.85V Data collection terminal (PDA)lithium battery pack(1S1P)

Model: YD010B-RBA
Cell: 655368 / 4000mAh / 3.85V
Minimum Capacity: 4000mAh
Nominal Voltage: 3.85V
Standard Charge Current: 800mA (0.2C)
Maximum Charge Current: 2000mA (0.5C)
Standard Discharge Current: 2000mA (0.5C)
Maximum Discharge Current: 4000mA (1.0C)
Packaging: Plastic shell, ultrasonic welding
Ingress Protection Rating: IP67

Solution Overview

Featured Batteries

Items	Details
BMS	18650, Lipo battery cells, Prismatic cells
Configuration	1S-4S
Capacity	700mAh-12800mAh
Temperature	Charge: 0℃ to 60℃ Discharge: -20℃ to 60℃
Protection	Shock-resistant, waterproof, intrinsically safe
BMS	MCU, MAXIM gauge, Real-time Temperature Monitoring, Real-time Communication, Protection Functions, Explosion-proof Circuit

Premium cells

Battery packs using high quality cells from LG, Samsung, Panasonic and other top tier manufacturers.

Dust-proof and waterproof

IP67, IP 68 rated, ensuring safe operation in hazardous environment.

Real-time Communication

I²C communication function, ensuring seamless and reliable data transmission.

Why Choose Gushine

14 Years of Battery Customization Expertise: As a long-term partner of leading handheld terminal brands, we leverage our deep industry knowledge to deliver comprehensive, one-stop solutions.

Global Service Network: With two manufacturing facilities and six offices worldwide, we offer fast, localized support wherever you are.

Strong R&D Capabilities: Our in-house R&D team specializes in software, hardware, structural design, reliability engineering, and DFMA, enabling us to create innovative, reliable battery solutions.

Commitment to Quality: We adhere to the industry's strictest quality management systems, ensuring that every battery and component follows a traceable production process, guaranteeing exceptional quality.
