Robot Vacuum Cleaner_SC002B–RBA
- 6000 mAh Long Runtime
- 8 A High-Power Output
- 2.9 A Fast Charging
- −10°C to 55°C Wide-Temperature Discharge
The battery uses a CC/CV constant-current/constant-voltage charging profile, with a standard charging current of 1.16 A and a maximum charging current of 2.9 A. The standard discharge current is 2.9 A, while the maximum discharge current can reach 8 A, meeting the power demands of robot startup, high-power vacuuming, obstacle crossing, and steering.It supports discharge from −10°C to 55°C, with charging rates adjusted according to ambient temperature, balancing charging safety, operational stability, and battery service life.
Product Specifications & Configuration

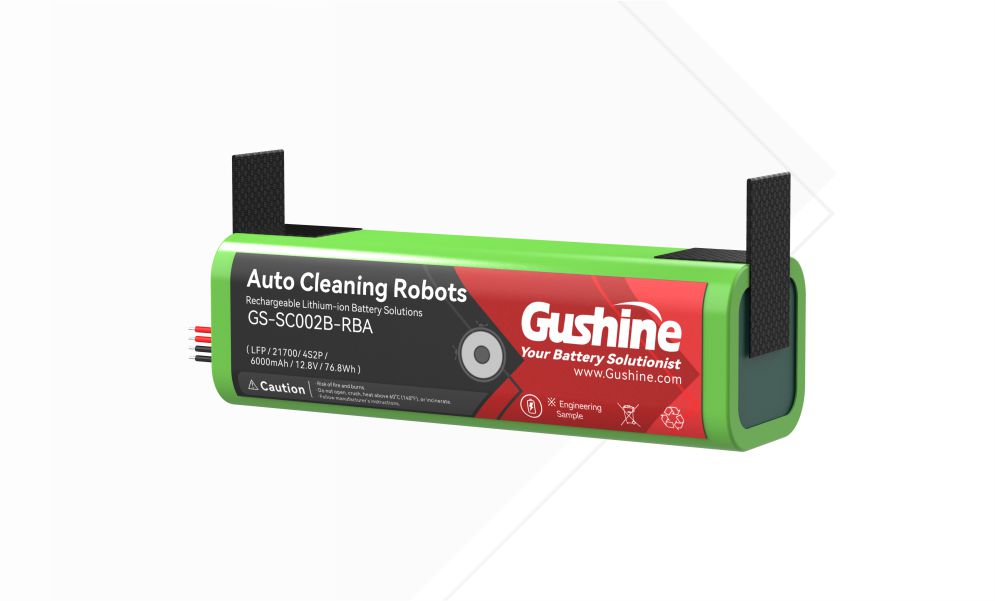

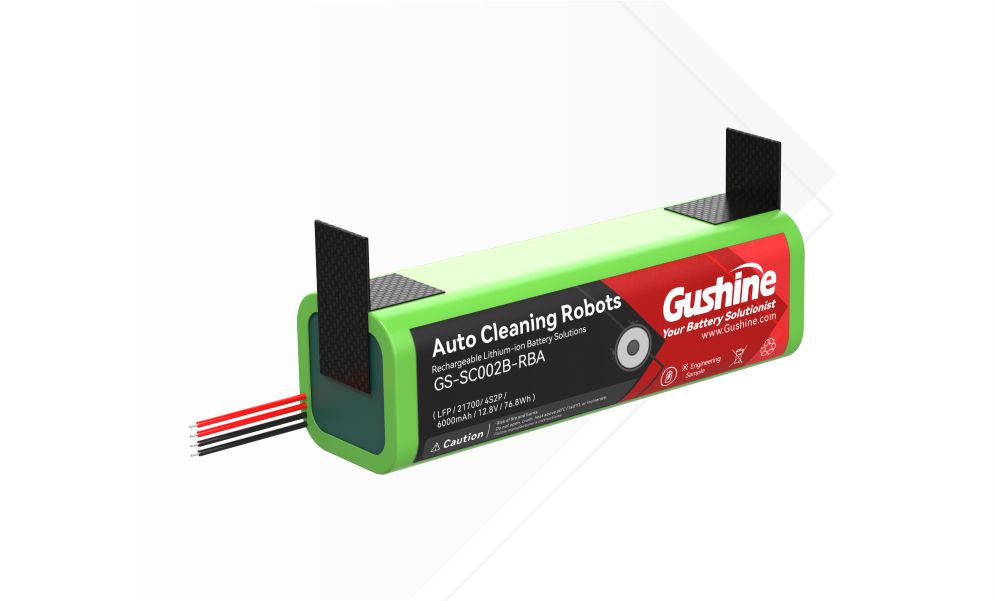

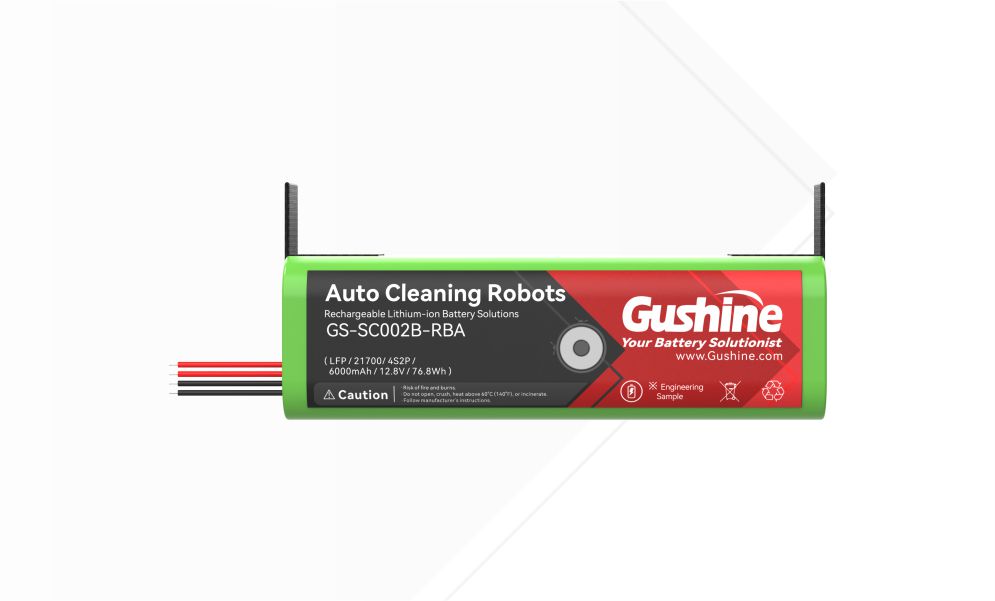

Battery Model: SC002B–RBA
Cell Type / Capacity: XC-IFR21700-3.0Ah
Battery Configuration: The battery pack consist of 8 cells (4S2P) and a PCM.
Basic Performance
| No. | Item | Parameter | Remarks | |
| 1 | Capacity | Typical Capacity | Typ. 6000mAh | 0.2C Discharge |
| Rated Capacity | Min. 5800mAh | |||
| 2 | Nominal Voltage | 12.8V | ||
| 3 | Limited Charging Voltage | 14.6V | ||
| 4 | Upper Limit Charging voltage | 14.6V | ||
| 5 | End of discharge Voltage | 8.0V | ||
| 6 | Discharge Cut-off Voltage | 7.2V | ||
| 7 | Charge Method | CC-CV | Constant current / constant voltage | |
| 8 | Standard Current | 1160mA | 0.2C | |
| 9 | Maximum current | 2900mA | 0.5C（10°C~+45°C） | |
| 10 | Standard Discharge Current | 2900mA | 0.5C | |
| 11 | Maximum Discharge Current | 8000mA | Cell Surface Temperature Below 60°C | |
| 12 | Operating Temperature | Charge | 0°C~+10°C | Charge at 0.2C to 14.6V |
| +10°C~+45°C | Charge at 0.5C to 14.6V | |||
| Discharge | -10°C~+55°C | |||
| 13 | Storage Temperature | Less than 1 month | -20°C~+55°C | Capacity recovery rate should be more than 80% under the storage status |
| Less than 3 months | -20°C~+45°C | |||
| Less than 1 year | -5°C~+30°C | |||
| 14 | Humidity of Storage | 65+20% | ||
| 15 | Internal Resistance | ≤180mΩ | After standard charging, test the internal resistance of the battery under 1KHz AC condition. |
|
| 16 | Pack Weight | 620g | About | |
| 17 | Pack Dimension | Length | Max. 149mm | |
| Width | Max. 45mm | |||
| Thickness | Max. 45mm | |||
6000 mAh Long Runtime: 12.8 V / 6000 mAh, approximately 76.8 Wh, providing stable energy for extended continuous cleaning.
8 A High-Power Output: A maximum discharge current of 8 A meets high-load demands during vacuum motor startup, high-power cleaning, obstacle crossing, and steering.
2.9 A Fast Charging: Supports charging at up to 2.9 A, improving recharge efficiency and reducing charging time.
Stable Wide-Temperature Operation: Supports discharge from −10°C to 55°C, with charging rates adjusted according to ambient temperature to enhance safety and operational stability under different conditions.
