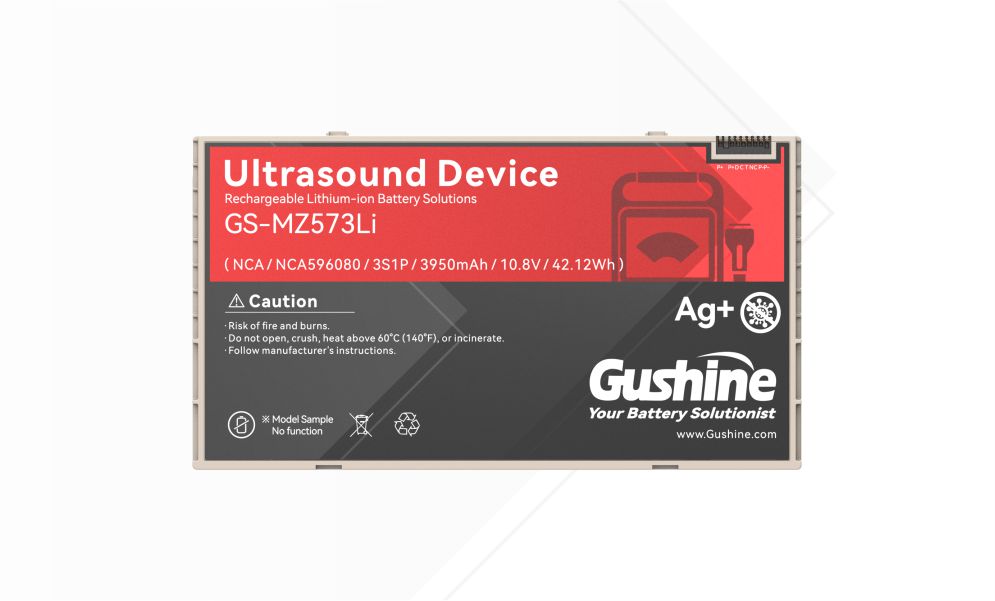

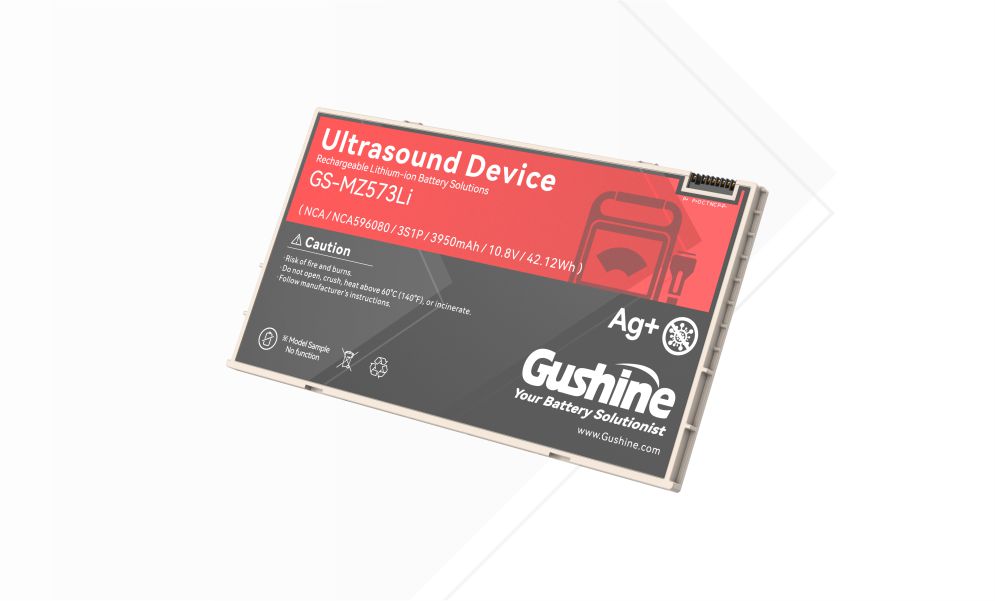

Medical X-ray Battery_MZ573Li
- 3950mAh Long Runtime
- Slim & Flat Design
- 0.5C Fast Charging
- −20°C to 60°C Wide-Temperature Discharge
The battery uses a CC/CV charging profile, with a charging voltage of 12.6 V ± 0.05 V. The standard charging current is 790 mA (0.2C), while the fast charging current can reach 1975 mA (0.5C), balancing charging stability and efficiency. The maximum discharge current is 3950 mA (1C), providing stable power for portable medical imaging equipment during normal operation and varying load conditions.
Product Information & Material Composition
Battery Model: MZ573Li
Cell Type / Capacity: 三元NCM/ 18650/ 2470mAh
Battery Configuration: Composition: The battery pack consists of 3 cells (3 series 1 parallel) with protective control circuit.
Nominal Specifications
| No. | Item | Parameter | Remark | |
| 1 | RatedCapacity | 3950mAh | 0.2C Discharge | |
| 2 | Nominal Voltage | 10.8V | ||
| 3 | Charge Voltage | 12.6V ± 0.05V | ||
| 4 | Discharge End Voltage | 8.25V | ||
| 5 | Charging Method | CC-CV | Constant Current / Constant Voltage | |
| 6 | Charge Current | 790mA | （0.2C） | |
| 1975mA | （0.5C） | |||
| 7 | Max. Discharge Current | 3950mA | （1.0C） | |
| 8 | Operating Temperature | Charge | 0°C~+45°C | |
| Discharge | -20°C~+60°C | |||
| 9 | Storage Temperature | 1 month | -20°C~+45°C | Capacity recovery rate should be more than 80% under the storage status |
| 3 months | -20°C~+40°C | |||
| 12 months | -20°C~+20°C | |||
| 10 | Relative Humidity | 65±20% | ||
| 11 | Internal Resistance | ≤ 240mΩ | measured at AC 1KHz after 50% charge | |
| 12 | Pack Weight | 302g | About | |
| 13 | Pack Dimension | Thickness | 210 +0.2 / -0.4mm | |
| Width | 115 ± 0.2mm | |||
| Length | 7.55mm | |||
Slim & Compact Design: With a maximum thickness of approximately 7.55 mm and a weight of about 302 g, the battery is ideal for portable medical imaging equipment with strict space and weight requirements.
Stable Continuous Power: 10.8 V / 3950 mAh, with a rated energy of approximately 42.7 Wh, providing reliable power for control, display, image processing, and communication modules.
Fast Charging: Supports up to 1975 mA (0.5C) charging with a CC/CV charging profile, improving charging efficiency and reducing downtime.
Wide-Temperature Operation: Supports discharge from −20°C to 60°C and charging from 0°C to 45°C, suitable for mobile examinations, bedside diagnostics, and other medical applications.
