The battery uses a CC/CV (Constant Current/Constant Voltage) charging profile, with a standard charging current of 1.625A and a maximum charging current of 2.1A. The standard discharge current is 650mA, with a maximum discharge current of up to 3A, providing reliable power delivery for continuous scanning, wireless data transmission, and transient load variations.The battery supports a discharge temperature range of −20°C to 60°C and a charging temperature range of 0°C to 45°C, making it suitable for a wide range of operating environments, including warehousing, logistics, retail, and industrial applications.

Product Specifications & Configuration

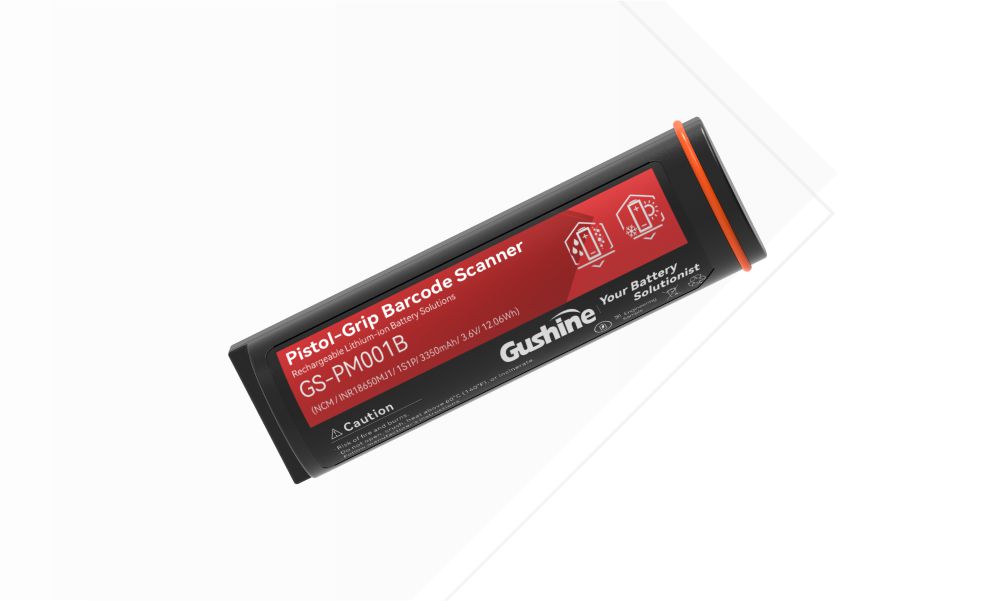

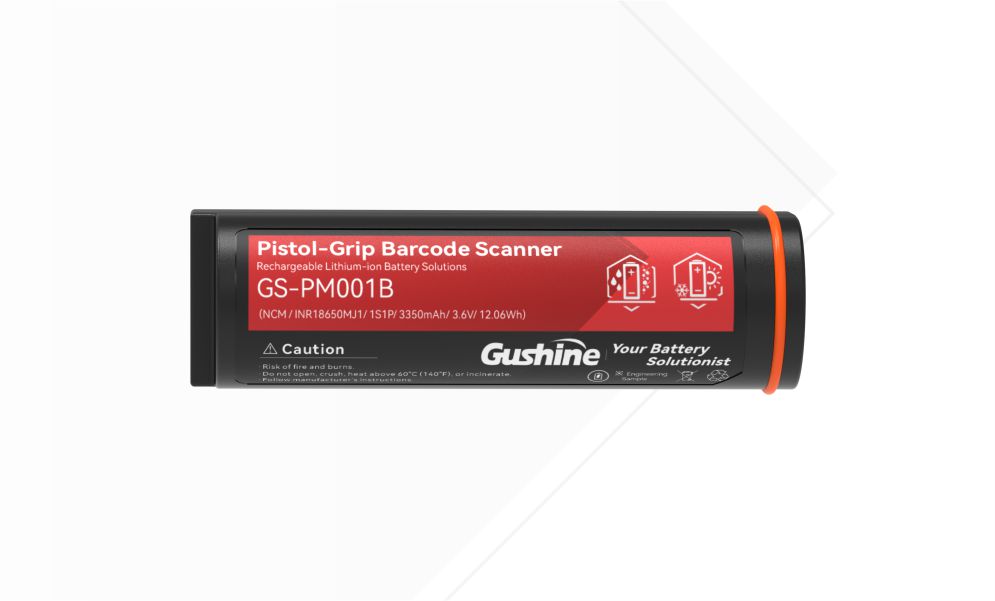

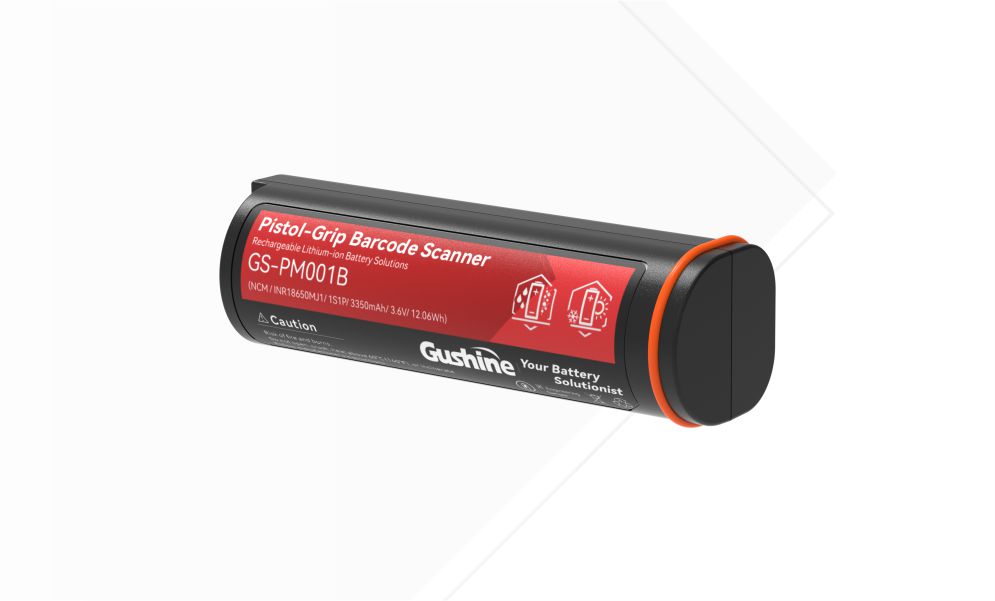

Battery Model: PM001B-ACA
Cell Type / Capacity: LG INR18650MJ1/3350mAh
Battery Configuration: Battery Configuration: 1S1P with an integrated Protection Circuit Module (PCM).

Basic Performance

No.	Item		Parameter	Remarks
1	Capacity		Typ. 3350 mAh	0.2C Discharge
			Min. 3250 mAh
2	Nominal Voltage		3.635 V
3	Charge Voltage Limit		4.2 V
4	Maximum Charge Voltage		4.25 V
5	Discharge Cut-off Voltage		2.9 V
6	Charging Mode		CC-CV	CC/CV
7	Standard Charge Current		1625 mA	0.5C
8	Maximum Charge Current		2100 mA
9	Standard Discharge Current		650 mA	0.2C
10	Maximum Discharge Current		3000 mA
11	Operating Temperature	Charging	0°C~+45°C
		Discharging	-20°C~+60°C
12	Storage Conditions	Less than 1 Month	-20°C~+60°C
		Less than 3 Months	-20°C~+45°C
		Less than 1 Year	-20°C~+20°C
13	Relative Humidity		65±20%
14	Internal Resistance		≤ 180mΩ	Measure the battery AC internal resistance at 1 kHz after standard charging.
15	Battery Weight		60g	About
16	Battery Dimensions	Length	74.8 mm（+0.1 / −0.25 mm）
		Width	21.5 ± 0.15 mm
		Thickness	22.9 mm（+0.0 / −0.35 mm）

3350mAh Extended Runtime: With a typical capacity of 3350mAh, the battery delivers reliable, long-lasting power for high-frequency scanning, data collection, and wireless connectivity.

2.1A Fast Charging: Supports charging currents of up to 2.1A, reducing charging time and improving device uptime and operational efficiency.

3A Stable Power Output: Provides a maximum continuous discharge current of 3A, supporting the simultaneous operation of scanning modules, wireless communication, and processors.

Wide Operating Temperature Range: Supports discharge from −20°C to 60°C and charging from 0°C to 45°C, ensuring reliable performance across warehouse, logistics, and industrial environments.
