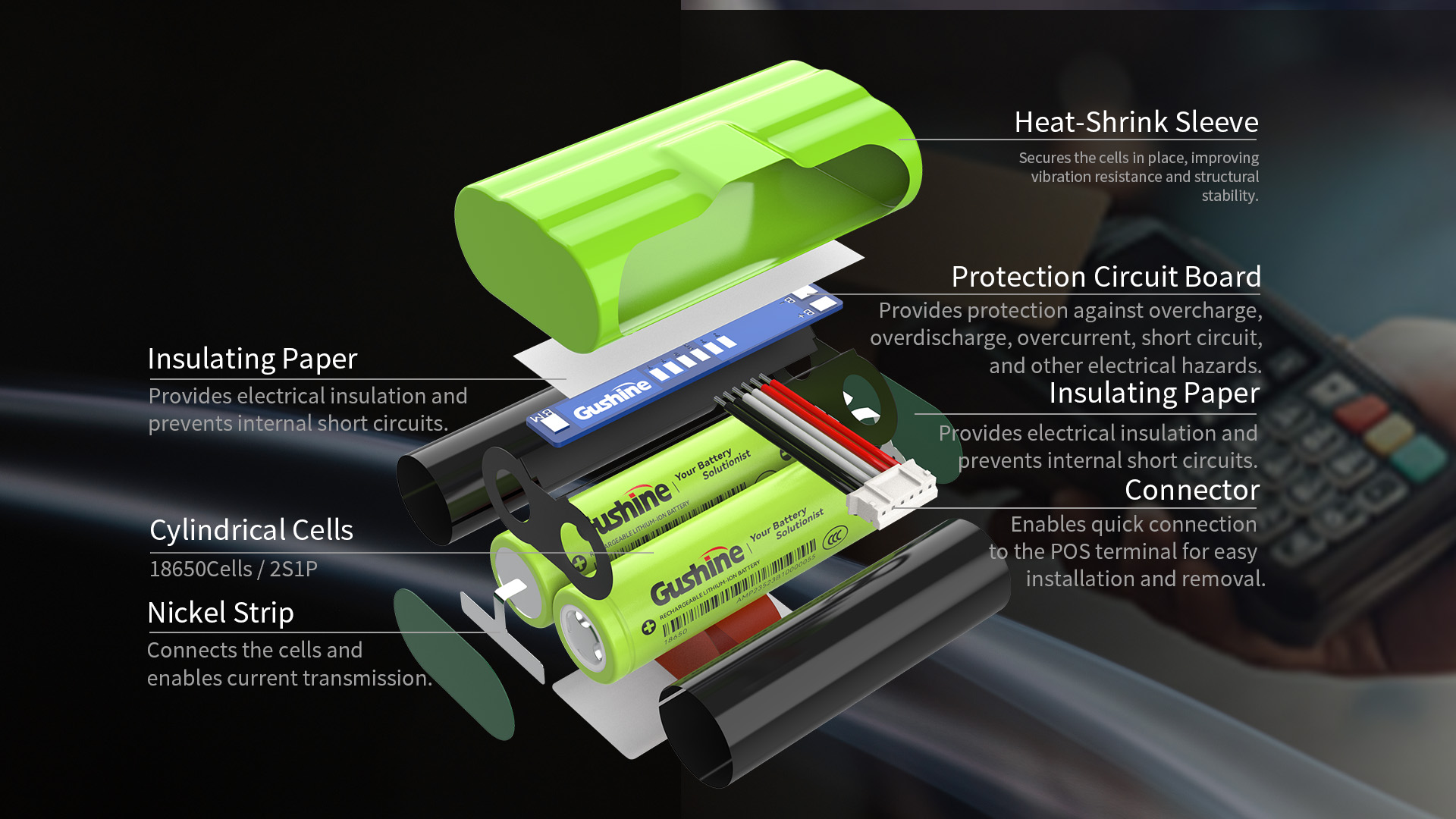

POS terminals feature compact internal structures, comprehensive safety protection,
and flexible interface configurations, enabling secure cell fixation,
short-circuit protection, current transmission, temperature monitoring, and fast integration with the complete device.
Safety First：Financial-grade safety is integrated throughout the entire process, from cell selection and protection circuitry to PACK assembly, ensuring that every battery meets the stringent requirements of POS terminals.
Precise Fit：With an in-depth understanding of diverse POS terminal applications, including handheld, countertop, and ultra-thin devices, Gushine provides customized cell matching and structural design for each device, balancing runtime and cost within limited space.
Reliable & Durable：From material selection to production control, we pursue outstanding consistency and long service life to help reduce customers' after-sales costs.
Simple & Efficient：We adopt a hardware-based protection solution, eliminating unnecessary communication and smart functions. This simplified design enhances system stability while providing a plug-and-play, maintenance-free user experience.

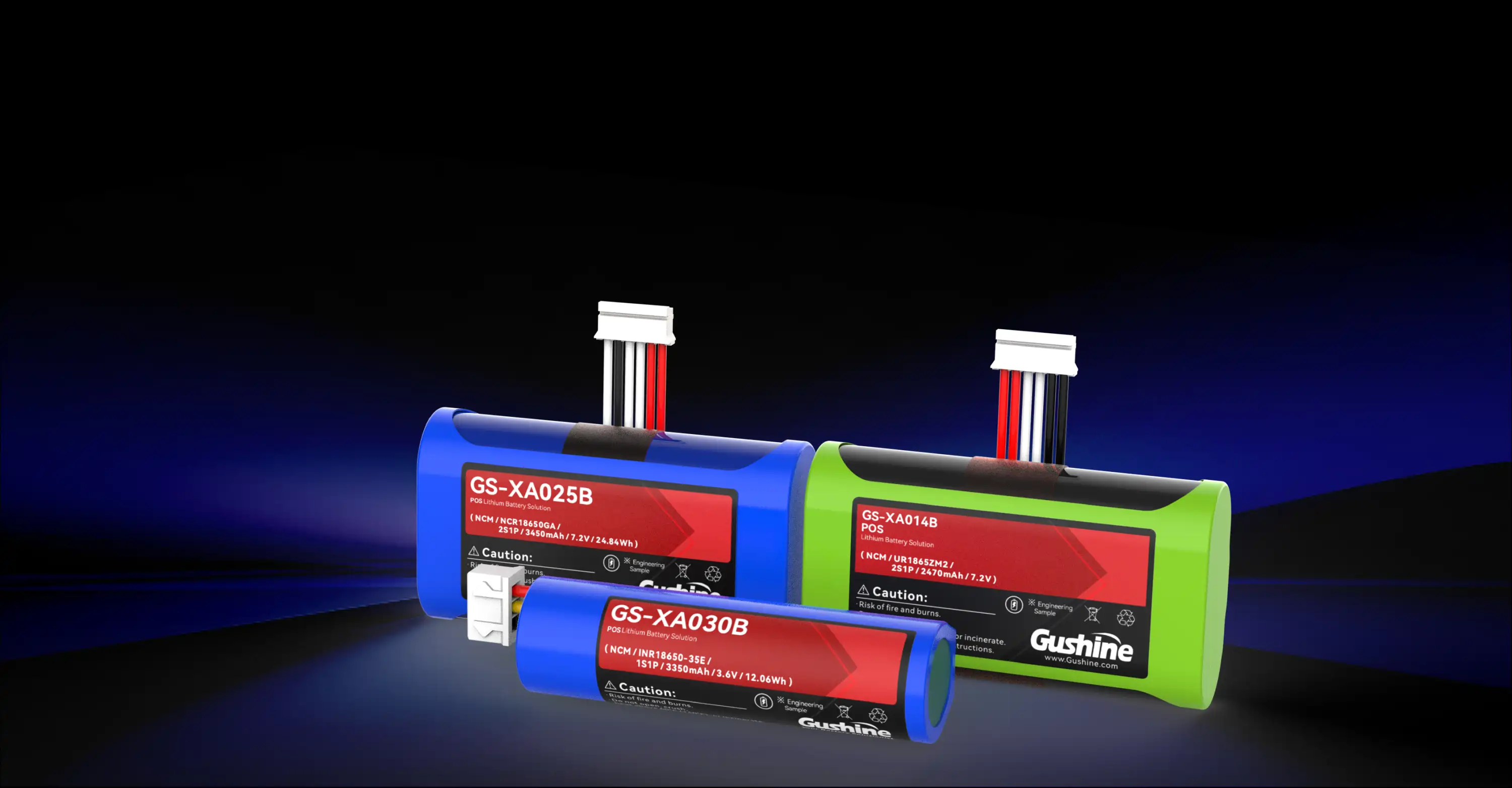

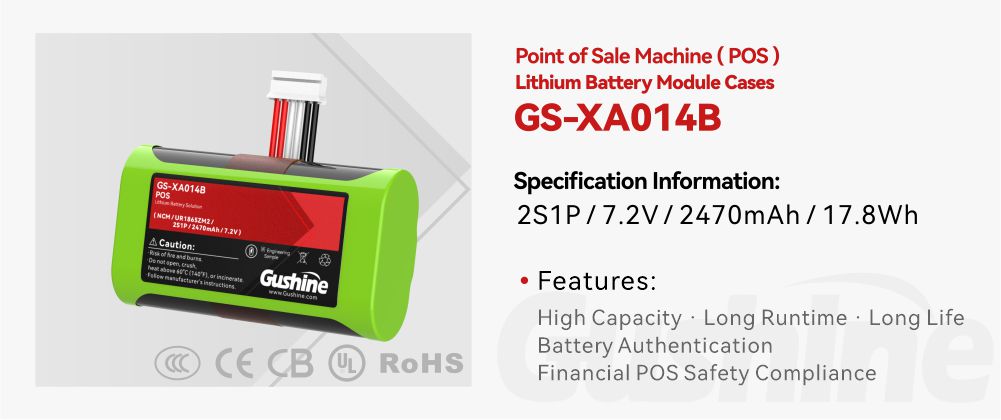

Professional Battery PACKs by Gushine,
Stable power output to help keep every transaction running without interruption.
Dimensions, connectors, wiring harnesses, identification,
and battery management can all be customized to meet the requirements of multiple POS models, high-volume production, and stable delivery.

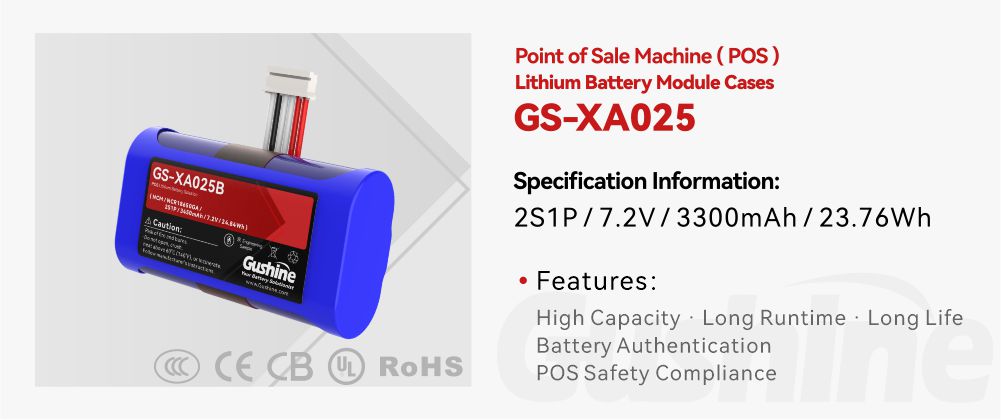

| Cell Type | Cylindrical Cells (18650) | Prismatic Cells (Aluminum Case) | Lithium Polymer Pouch Cells (Slim Design) |
| Common Cell Chemistry | NCM | NCM | LCO |
| Series-Parallel Configuration | Mainstream:1S1P/ 2S1P Optional:2S2P | ||
| Capacity Range | 2000-7000mAh | 800-5000mAh | 1500-10000mAh |
| Applicable Products | Android POS、Smart POS、Financial POS、mPOS | ||
| Nominal Voltage | 1SxP: 3.60 V - 3.80 V 2SxP: 7.20 V - 7.60 V |
1SxP: 3.60 V - 3.80 V 2SxP: 7.20 V - 7.60 V |
1SxP: 3.60 V - 3.80 V 2SxP: 7.20 V - 7.60 V |
| Maximum Charging Voltage | 1SxP: 4.20 V 2SxP: 8.40 V |
1SxP: 4.20 ~ 4.40 V 2SxP: 8.40 ~ 8.80 V |
1SxP: 4.20 ~ 4.40 V 2SxP: 8.40 ~ 8.80 V |
| Discharge Cut-off Voltage | Single cell 2.5V-3.0V | ||
| Maximum Discharge Rate | 0.5C-2.0C | ||
| Operating Temperature | Charging: 0℃-45℃ Discharging:-20℃-60℃ | ||
| Communication / Identification Methods | NTC Temperature Sensing/ID Resistor Identification/ID Chip Identification /I²C Communication/SMBus Communication/1-Wire Communication/UART Communication |
||
* Solution Compatibility Supports mainstream 1S/2S series-parallel configurations and 18650 cylindrical,
prismatic aluminum-case, and lithium polymer pouch cell options, meeting the requirements of various terminal applications, including Smart POS, Android POS, Financial POS, and mPOS.

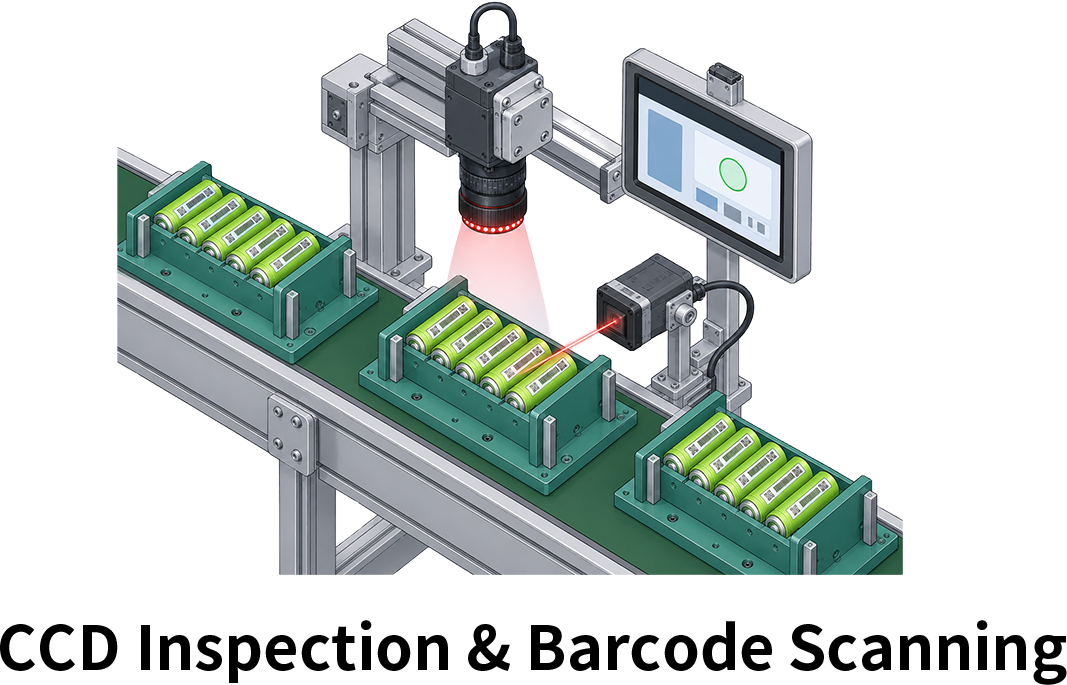

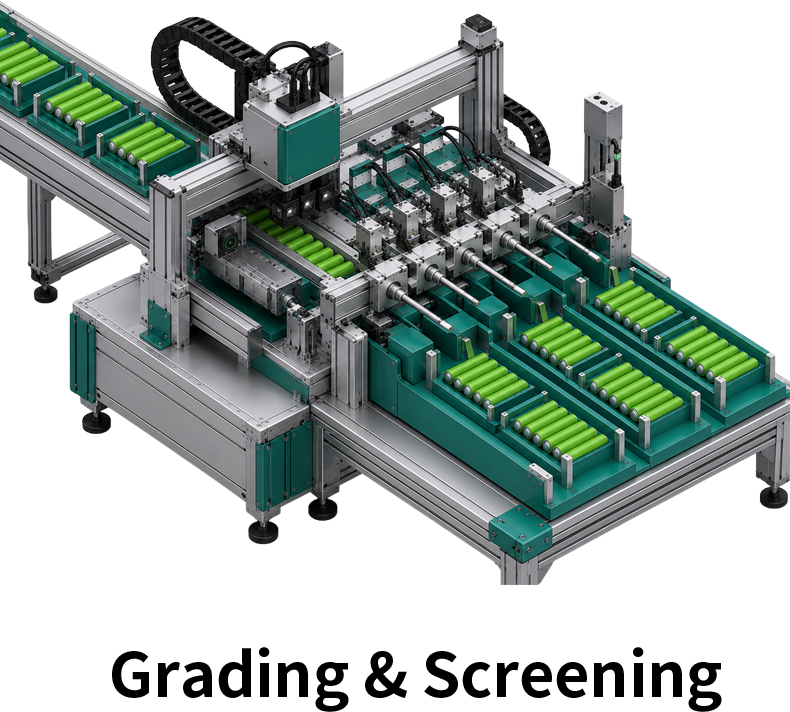

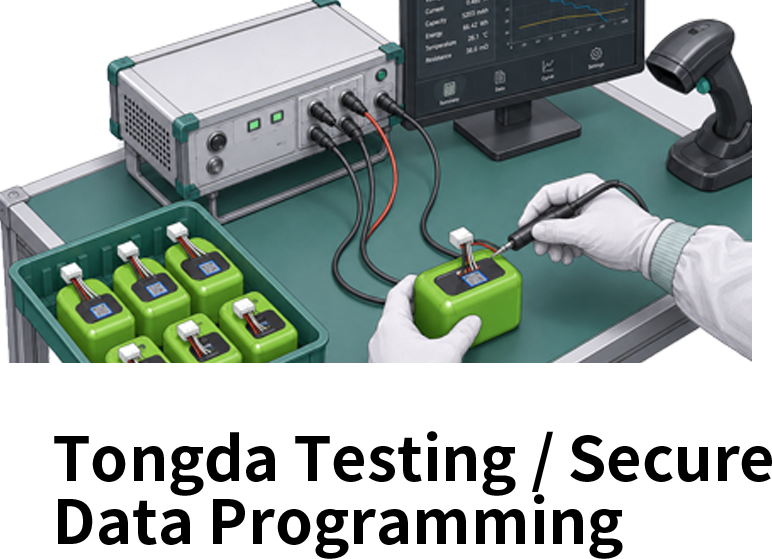

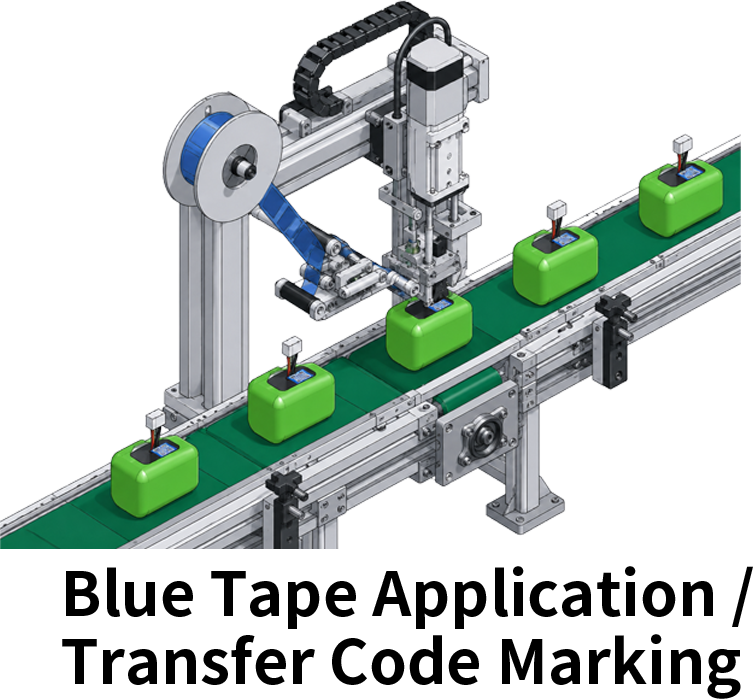

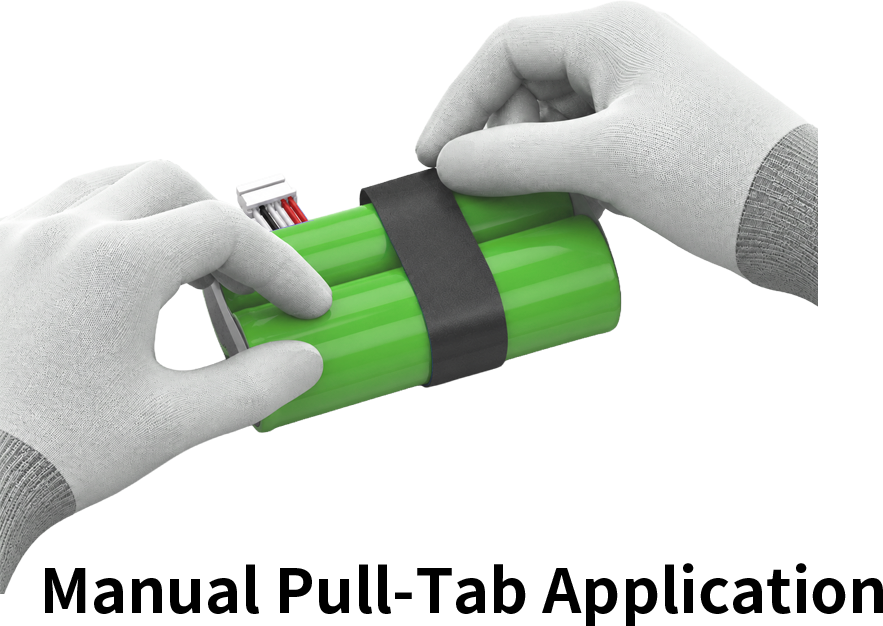

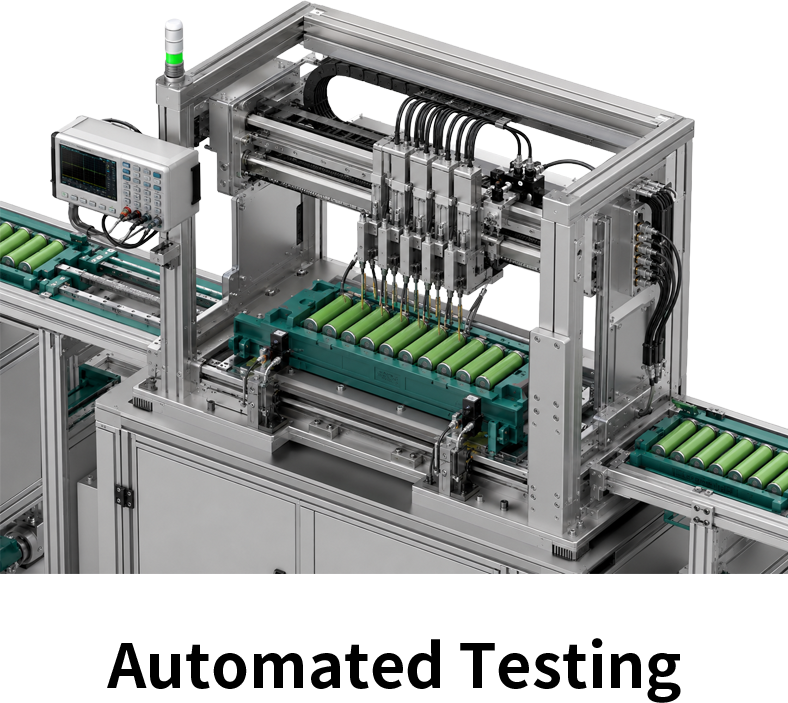

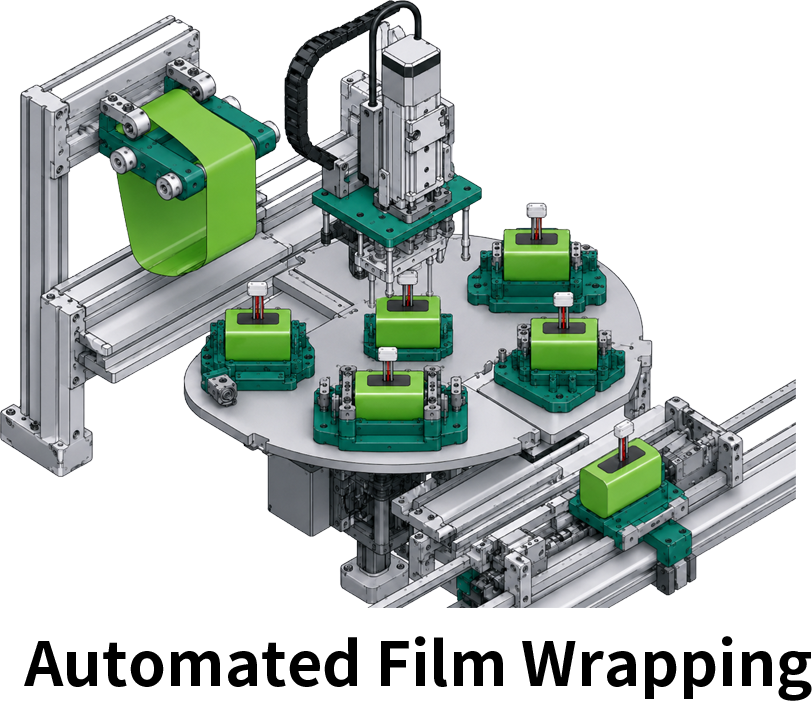

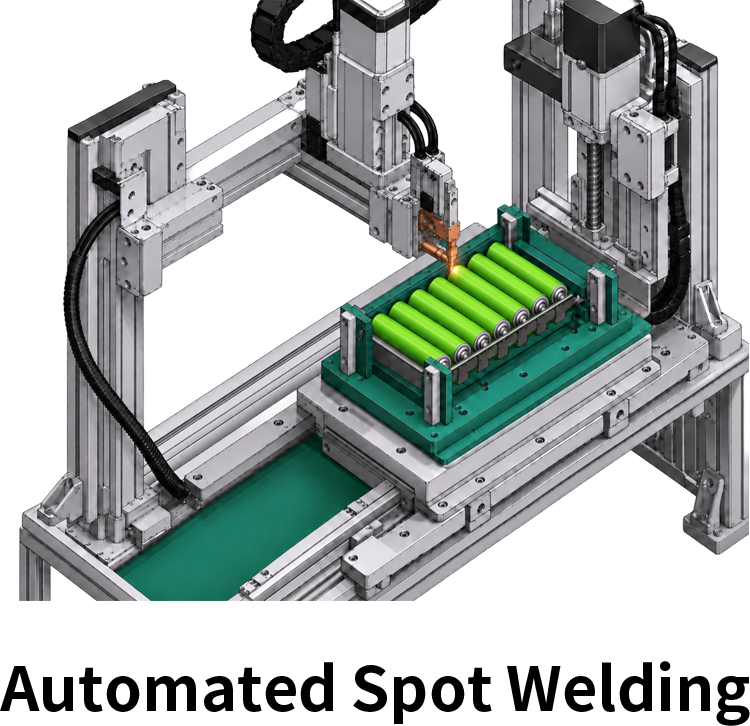

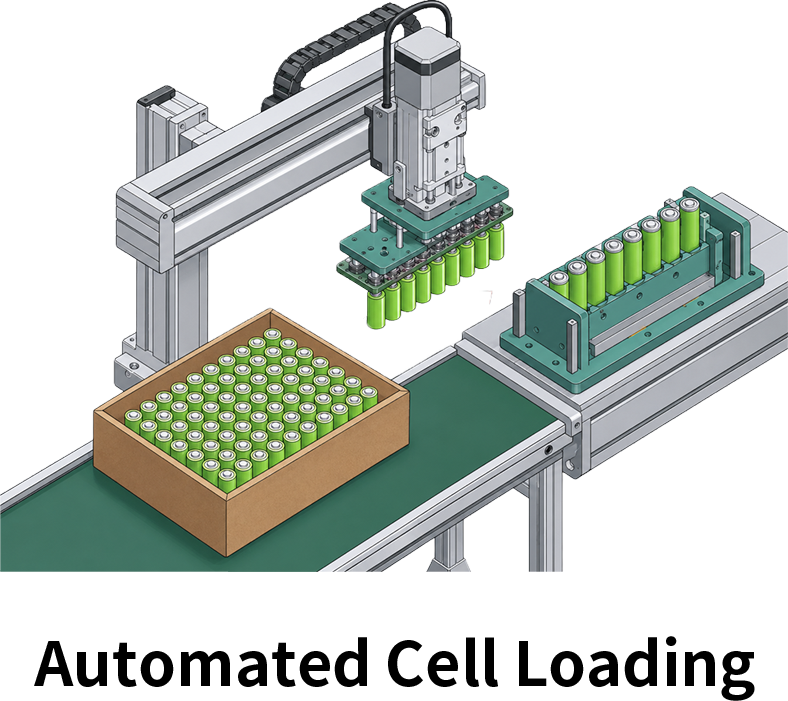

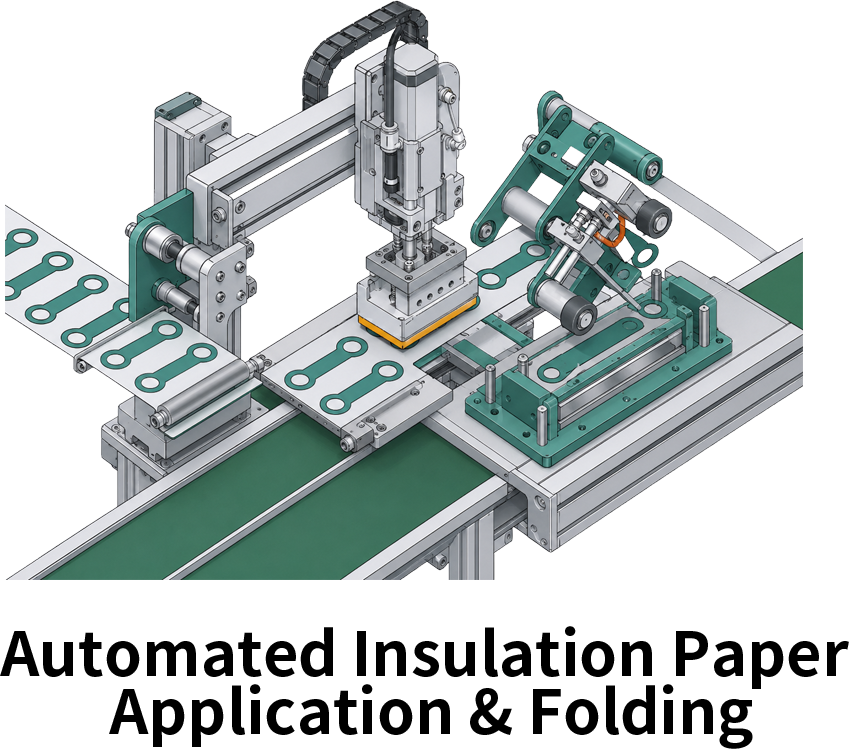

Standardized processes, full-process traceability, and automated inspection ensure the safety,
reliability, consistent quality, and stable delivery of every POS battery PACK.
Gushine develops its battery solutions around POS terminal requirements and continuously enhances the safety, stability, and compatibility of its battery PACKs through safety certifications, performance testing, and reliability validation.
| Country | Certification Standards | Logo |
| China-CCC | GB 31241 |  |
| North America-UL | UL2054 |  |
| Russia-GOST R | GOST R IEC 62133 |  |
| European Union-CB | IEC 62133-2 | N/A |
| European Union-CE | EN 62133-2、EN 61000、 (EU) 2023/1542 |  |
| Japan-PSE | JIS C 62133-2 |  |
| South Korea-KC | KC 62133-2 |  |
| India-BIS | IS 16046 / IEC 62133-2 |  |
| Global Transportation-UN38.3 | ST/SG/AC.10/11/Rev.8/Section 38.3 | N/A |
| Others | .... | ... |

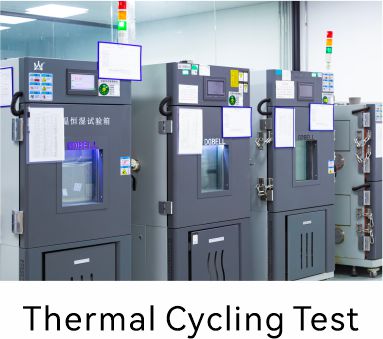

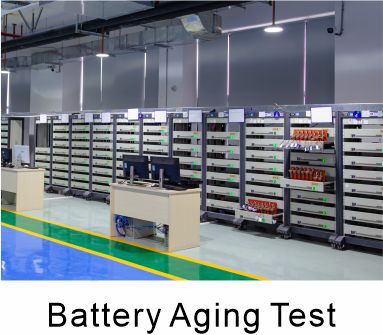

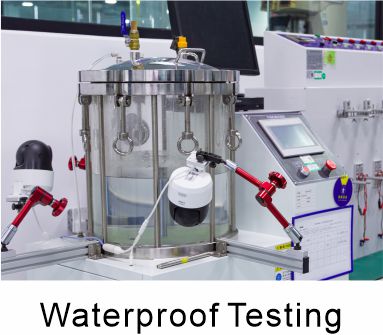

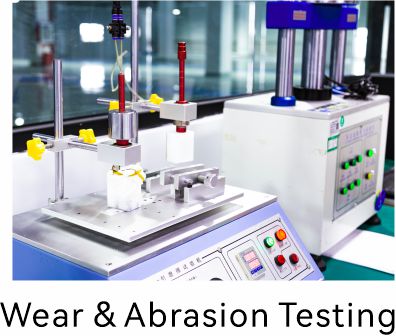

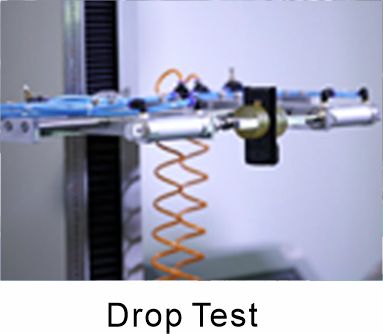

Gushine POS batteries undergo rigorous testing across three key areas: electrical performance, environmental adaptability, and safety performance.。Our products have obtained multiple internationally recognized certifications and standards, including IEC, UL, UN38.3, and GB, supporting market access requirements worldwide.Supported by comprehensive testing facilities and data traceability systems, Gushine ensures a high level of consistency and reliability for every battery shipped, providing customers with dependable power solutions.
To meet the multi-model, high-volume, and global delivery requirements of POS terminals, Gushine leverages two manufacturing bases in Zhuhai, China and Hai Phong, Vietnam, enabling flexible production capacity allocation, unified quality control, and efficient delivery support.
